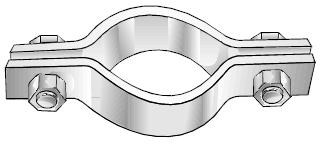

550 Series Single Bolt Pipe Clamp - 550-140

550-140

Globe Pipe Hanger Products

Recommended For The Support And Stabilizing Of Vertical Pipe Runs.

Quick Overview


  • Size Range : 1/2" Through 30" Pipe Sizes.
  • Material : Carbon Steel
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Function : Recommended For The Support And Stabilizing Of Vertical Pipe Runs. Overall Length Is Less Than A Riser Clamp.
Interested in this item or want more information?

Hours:

Phone: 562-788-7170

Email: sales@jcssupply.com

Can't find what you want? Give us a call and we can help you find it.

Details




Specifications
MaterialCarbon Steel
FinishBlack
Pipe Size4 inches
A8 1/8 inches
B6 7/8 inches
Bolt Size5/8 inches
Material Thickness3 gauge
Material Size1 1/4 inches
Max. Recommended Load (At 650°F)1040 lbs
Max. Recommended Load (At 750°F)930 lbs
Approx. Weight per 100 (pcs.)186 lbs

Additional Information


Manufacturer: Globe Pipe Hanger Products
For More Information on the 550 Series Single Bolt Pipe Clamp - 550-140, [Click Here] to Link to Manufacturer Web Site
